Lath brush with mount
The combination of materials is very flexible, resulting in a product with many different appearances and application possibilities. Brush slats are highly suitable for welding workpieces or machines, and protect them from moisture, water, dust and vermin. But they are also used for directing, transporting, pressing and carding products.
Depending on the application and the profile of the brush strip, the length can vary from a few centimetres to 6 metres. Width and layout are also variable. In practice, many problems can be solved using a known solution. That’s why we always have standard slat brushes in stock.

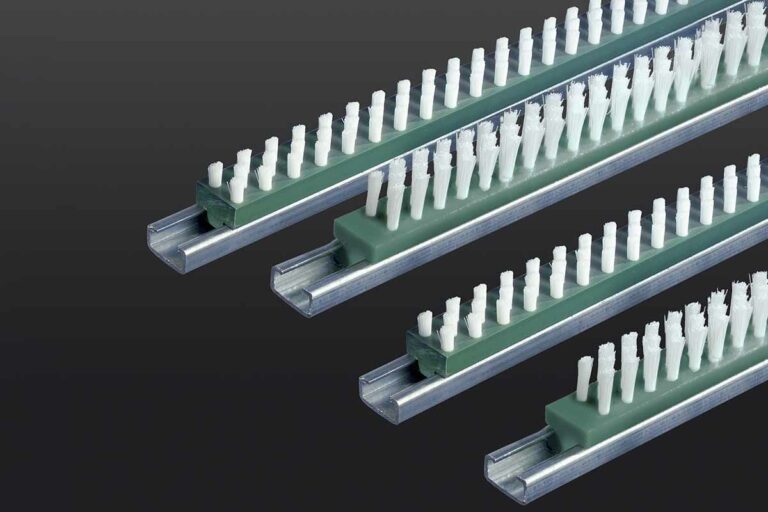

For demanding applications with higher-than-normal wear, KOTI offers a special lath brush with a C-profile. This lath brush can be replaced quickly and easily. Once the profile that holds the brush is attached, the lath brush can simply be removed. Other than profile-C, you can also choose batten brushes with profile-H / profile-F or normal batten brushes, which are available with an aluminum profile.
Models
The models shown are standard. For all other requests, please contact our sales department.
Parameters
- L – Length
- B – Profile width
- B1 – Profile frame width
- H – Profile height
- H1 – Profile height
- VM – Lining
- VD – Fiber diameter
- ZH – Fiber outlet
| Lath brush with mount | |||
| Item number | Dimensions (l x h) | Profile type | |

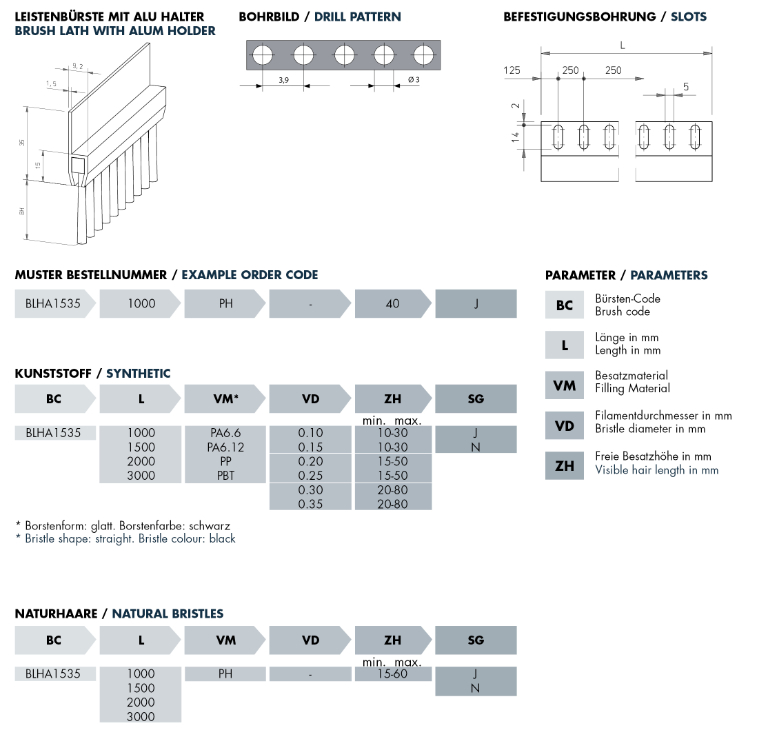

| BLHA1535 | 15 x 35 | H-shaped support | |

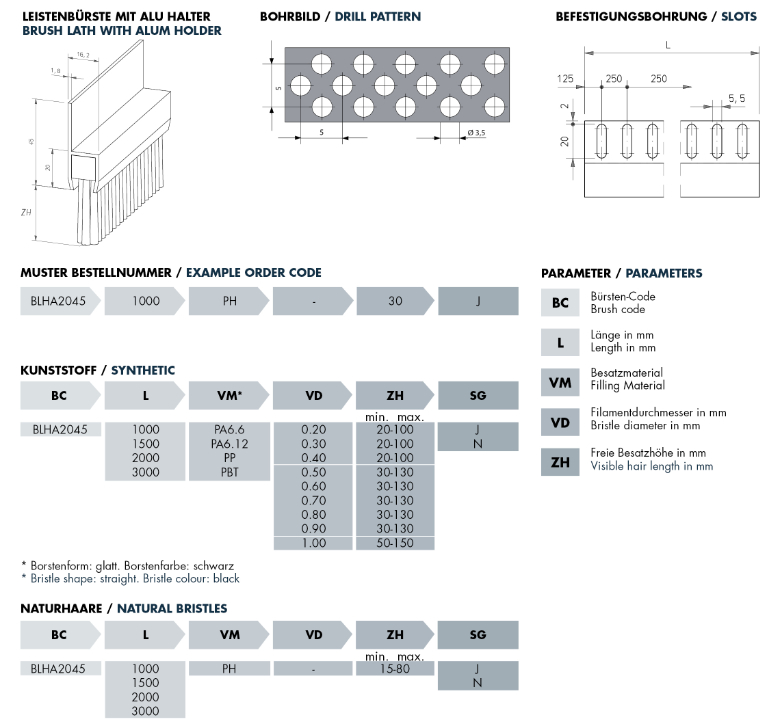

| BLHA2045 | 20 x 45 | H-shaped support | |

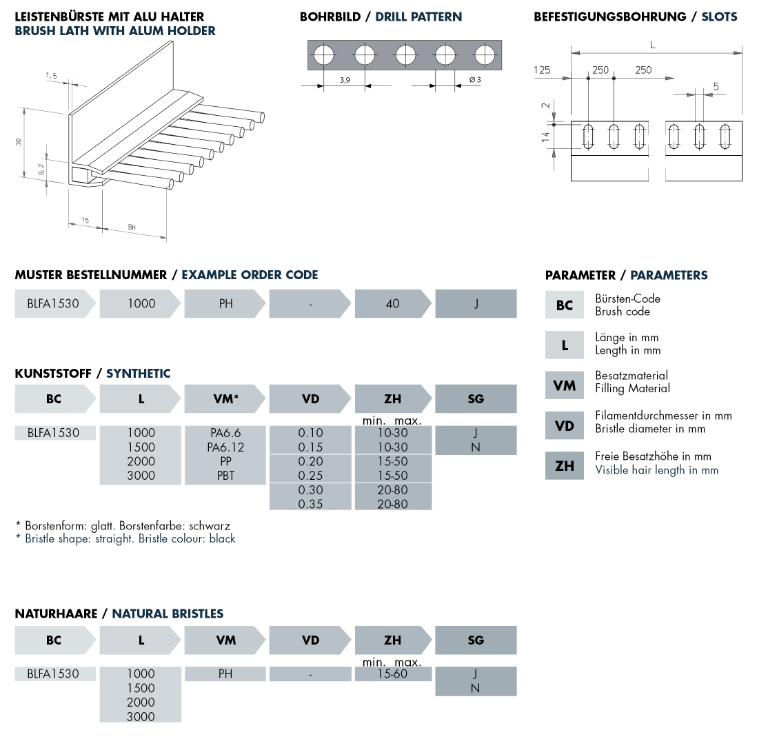

| BLFA1530 | 15 x 30 | F-bracket | |

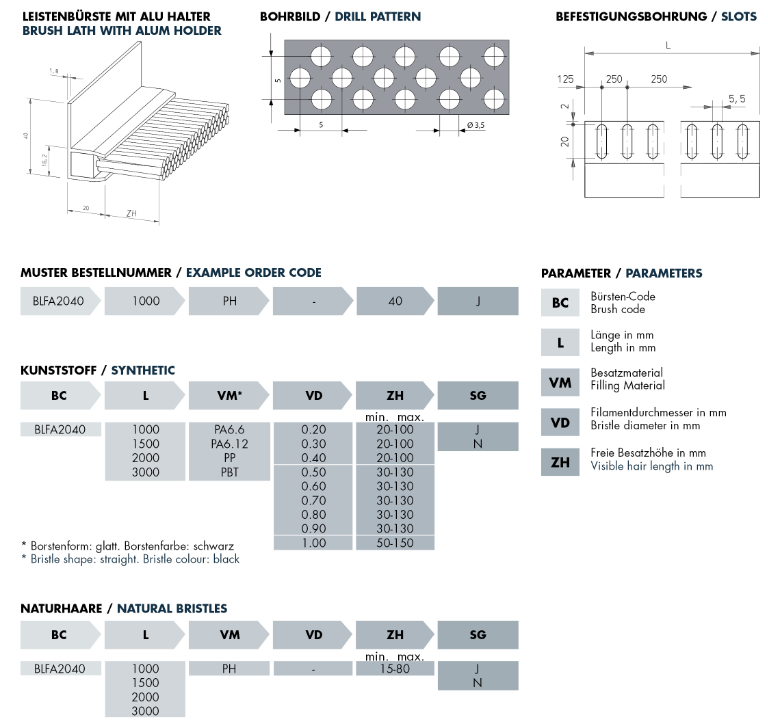

| BLFA2040 | 20 x 40 | F-bracket | |

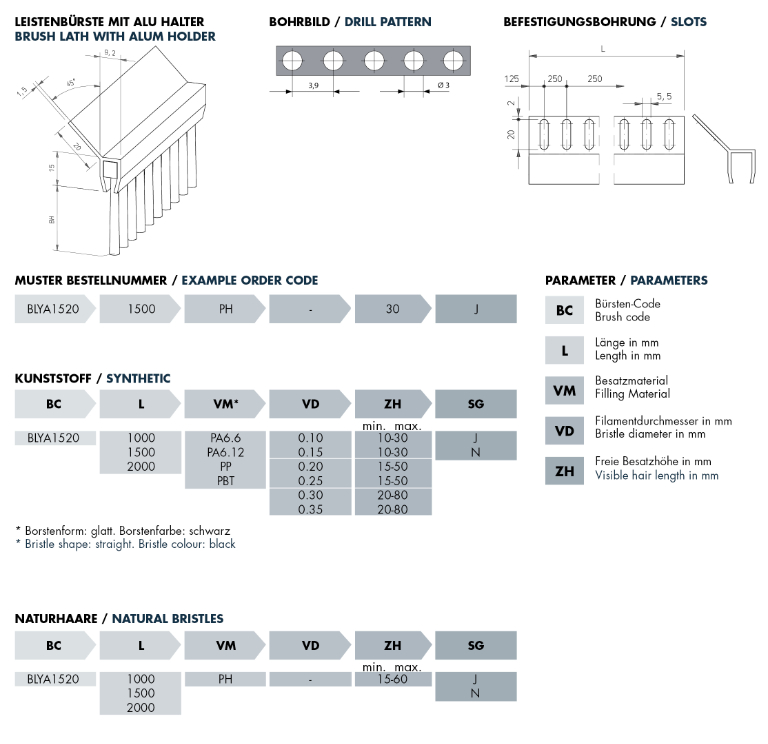

| BLYA1520 | 15 x 20 | Y-bracket | |

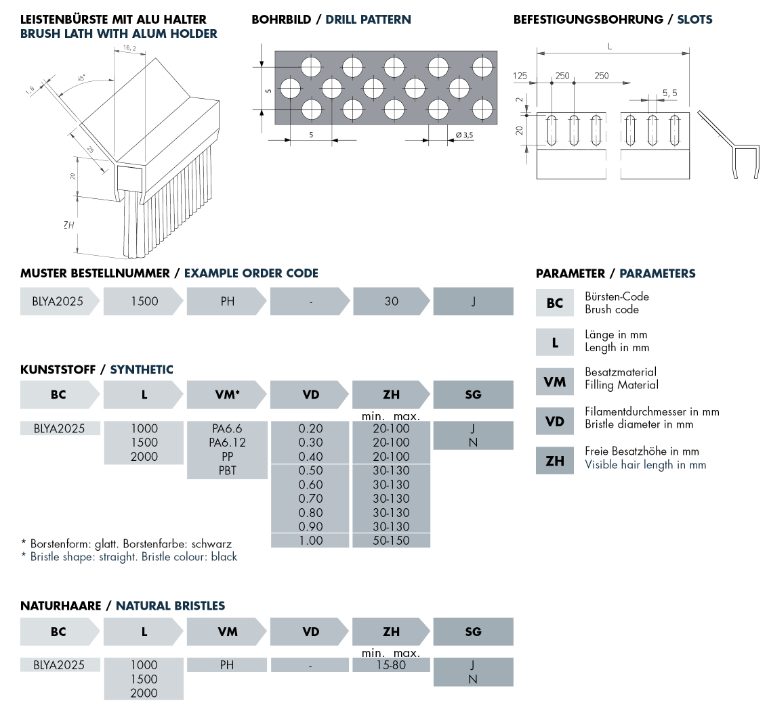

| BLYA2025 | 20 x 25 | Y-bracket | |

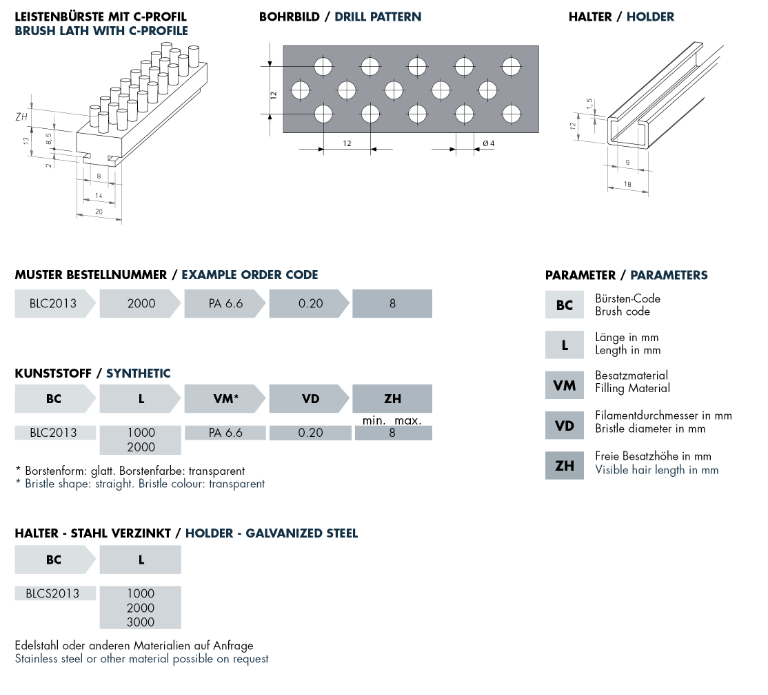

| BLC2013 | 20 x 13 | Profile C slat brush | |

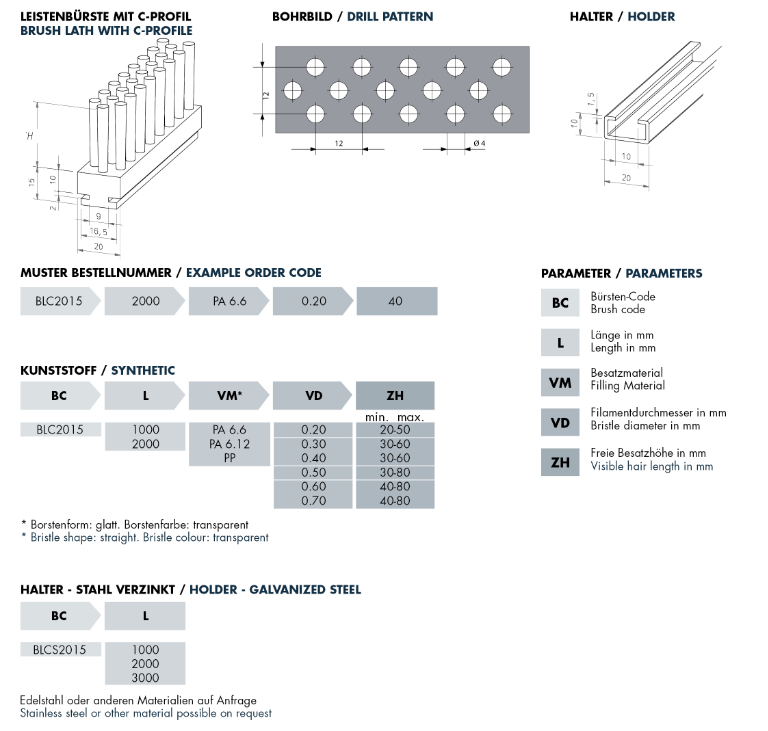

| BLC2015 | 20 x 15 | Profile C slat brush | |

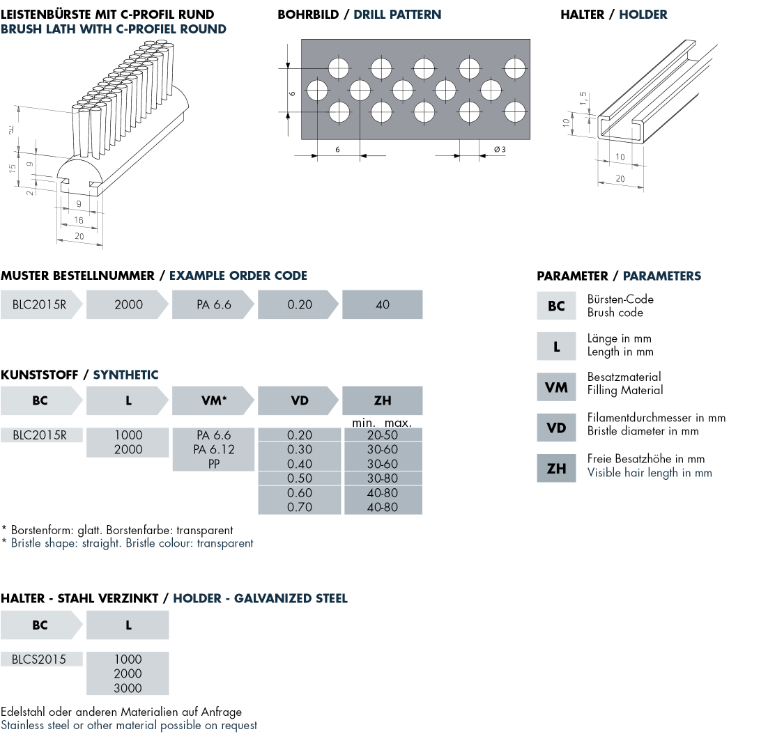

| BLC2015R | 20 x 15 | Profile C slat brush | |

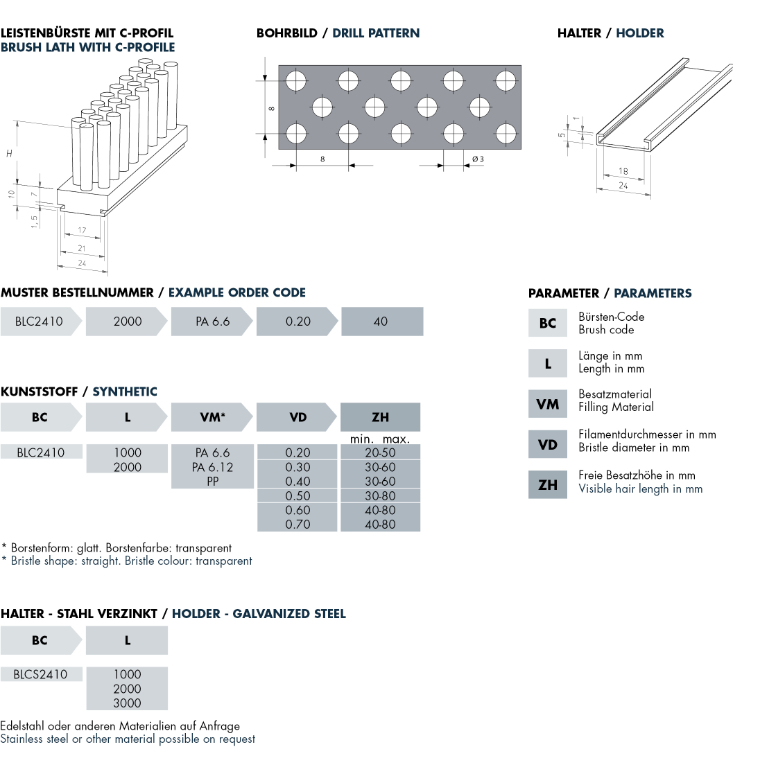

| BLC2410 | 24 x 10 | Profile C slat brush | |

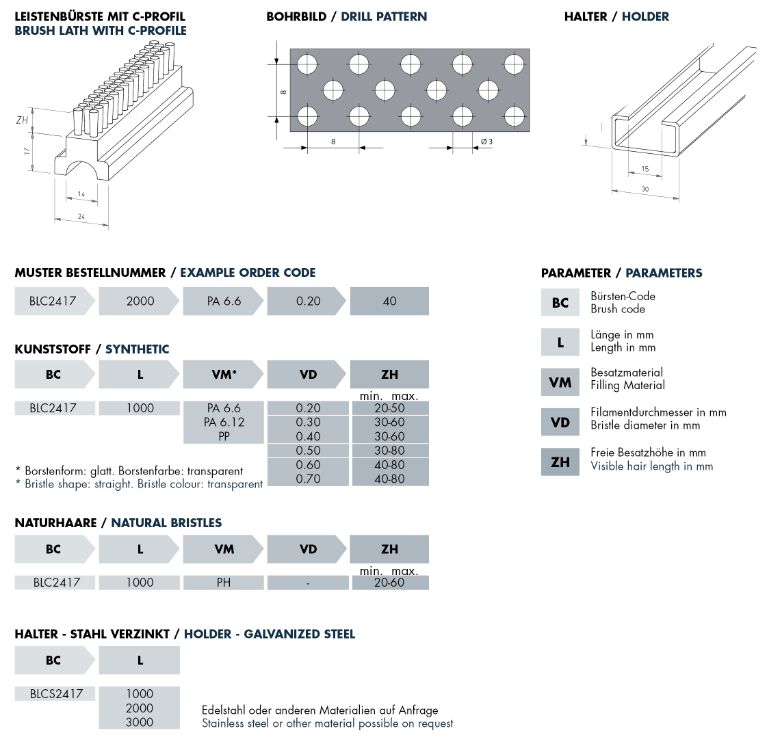

| BLC2417 | 24 x 17 | Profile C slat brush | |

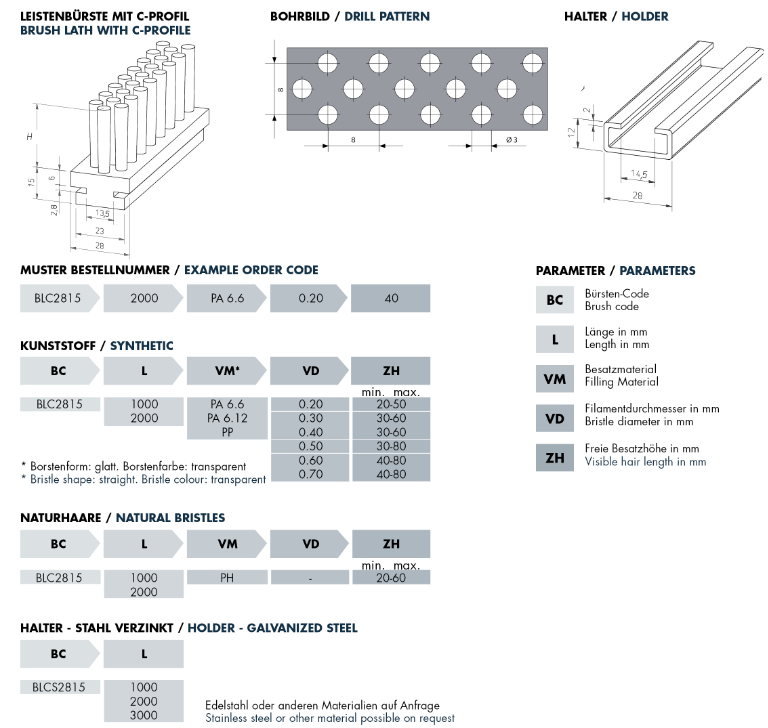

| BLC2815 | 28 x 15 | Profile C slat brush | |

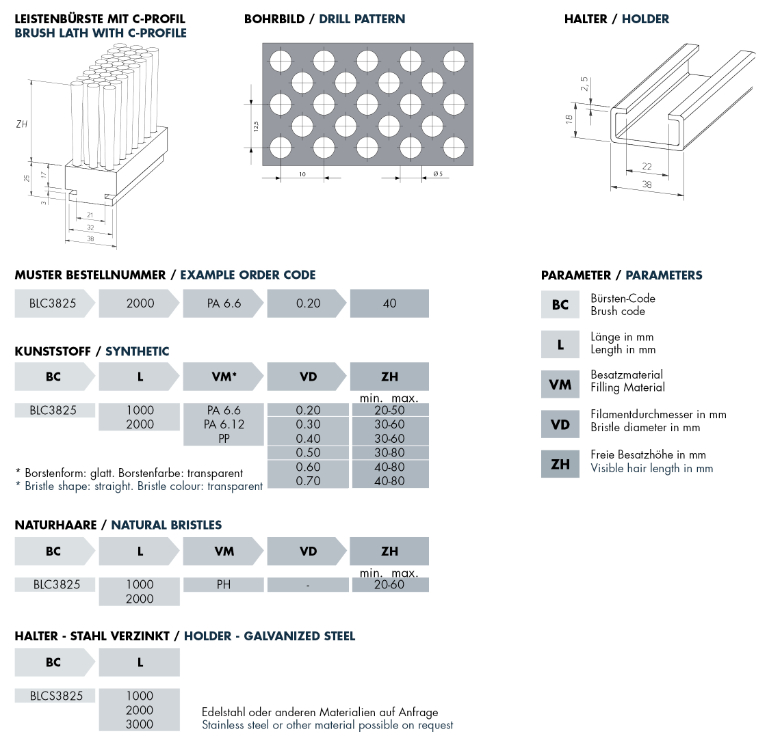

| BLC3825 | 38 x 25 | Profile C slat brush | |
Lining
The type of lining we use will depend on your application and industry. Do you have any questions about which fiber to use? Please do not hesitate to contact us.
| Lining | |||
| Abbreviation | Description | Benefits | |
| PA 6.12 | Polyamide 6.12 | Does not retain moisture, better resilience than nylon 6.6 | |
| PA 6.6 | Polyamide 6.6 | Suitable for industrial applications, heat and abrasion resistant | |
| PP | Polypropylene | Non-moisture-holding, acid-resistant, lower abrasion resistance than nylon 6.6 and 6.12 | |
