Brush plate
The usefulness of plate brushes is no longer in question, with their multitude of possible applications. The applications are very diverse: guiding, transporting, pushing, pressing, washing. Example: guiding steel sheets on a punching machine or protecting glass plates.
Plate brushes with capacities of 500, 1250 and 2000 kg/m² come as standard. Naturally, we can produce any other brush for the capacity, weight and shape you require. We are one of the few manufacturers able to supply 2500 x 1200 mm plate brushes as standard.
Depending on the application, it can be filled with synthetic fibers, temperature-resistant fibers (up to 210°C) or brass fibers. The packing density will be adapted to the application. Depending on the choice of packing material and substrate, noise will be reduced and the risk of damage minimized.

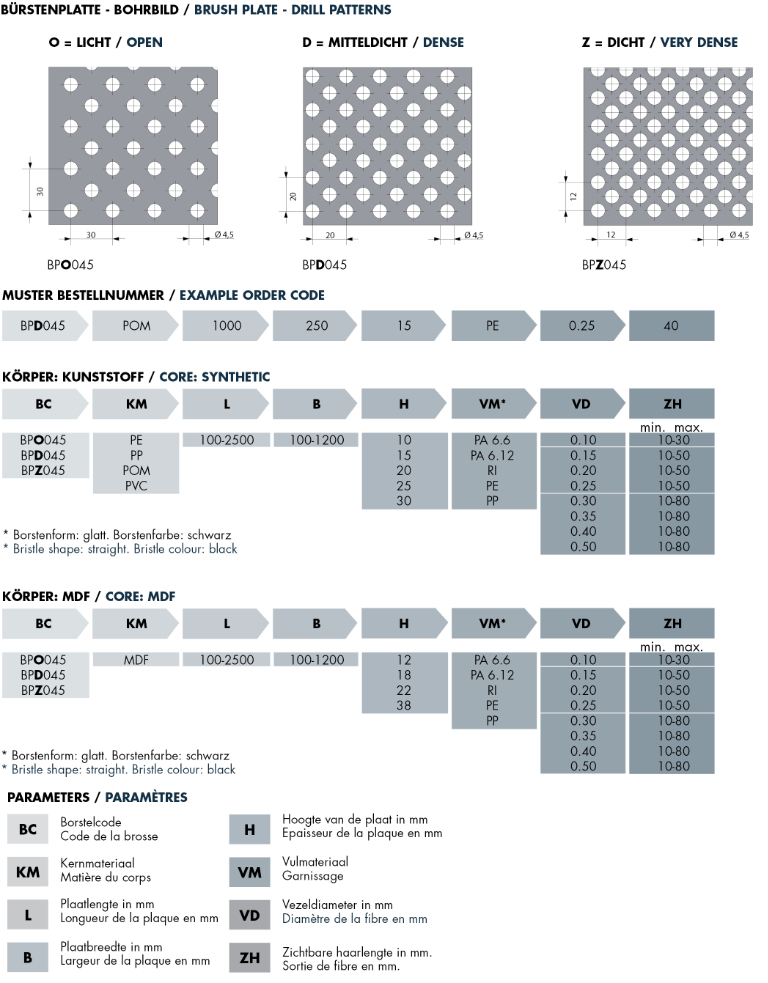

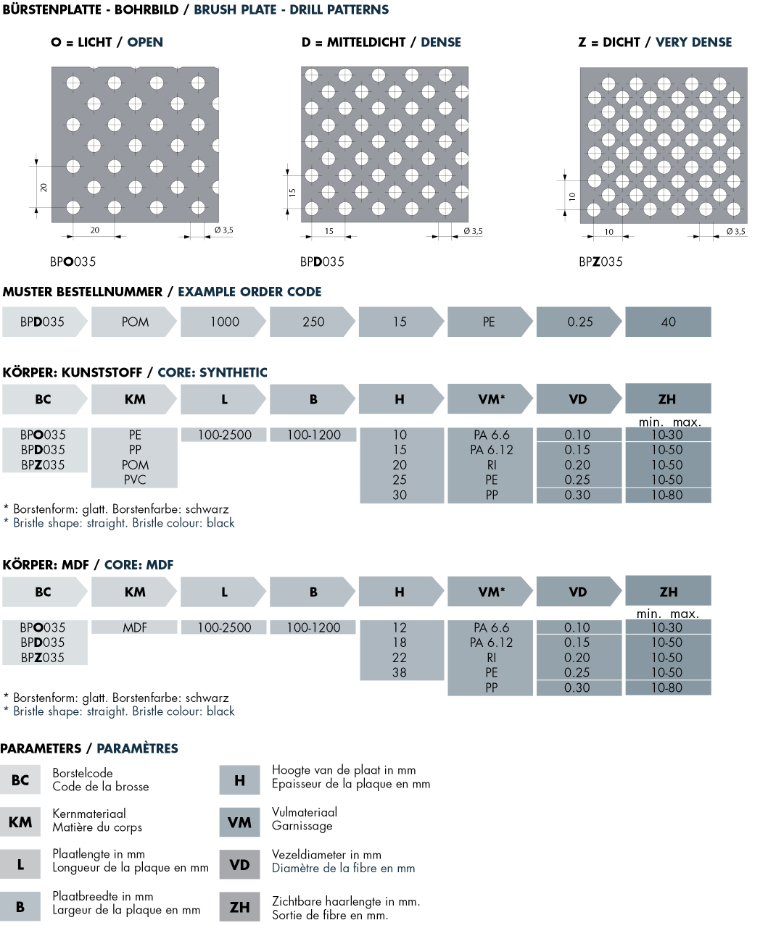

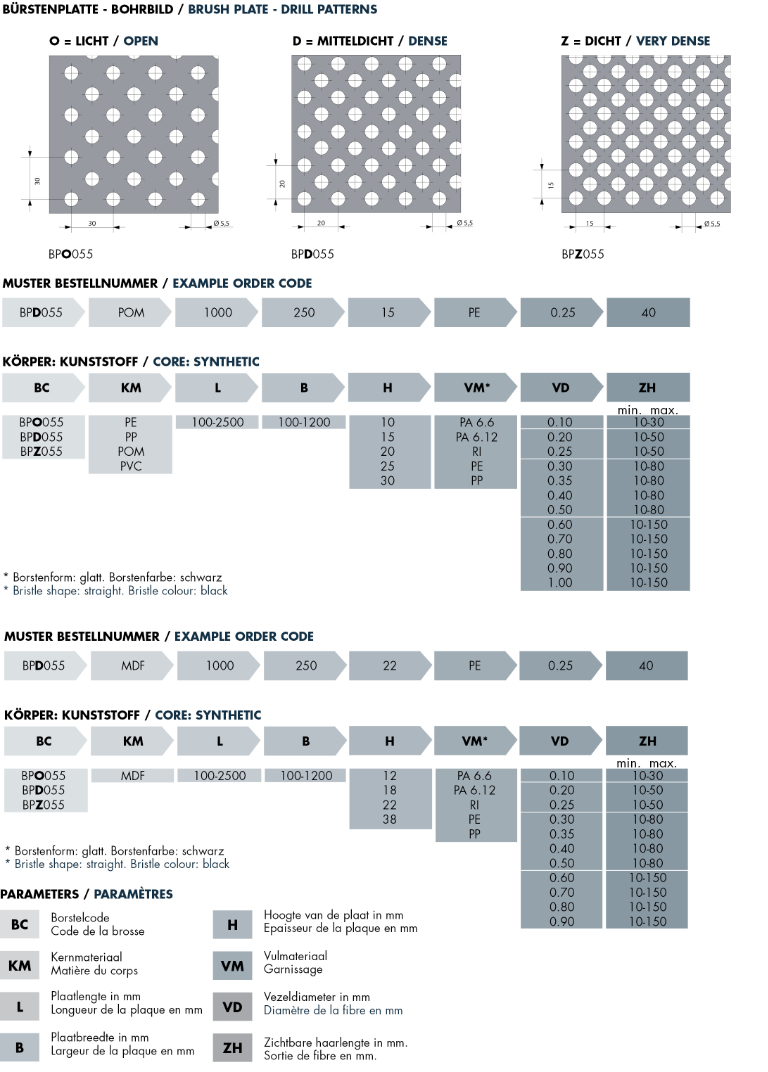

Models
The models shown are standard. For all other requests, please contact our sales department.
Parameters
- BG – Drill hole
- KM – Body material
- H – Height
- BB – Brushing thickness
- KB – Body width
- BL – Brush length
- KL – Body length
- VM – Lining
- VD – Fiber diameter
- ZH – Fiber outlet
Lining
The type of lining we use will depend on your application and industry. Do you have any questions about which fiber to use? Please do not hesitate to contact us.
| Lining | |||
| Abbreviation | Description | ||
| PE | Polyethylene | ||
| PP | Polypropylene | ||
| MDF | Medium-density fiberboard | ||
| POM | POM | ||
| PVC | PVC | ||
