Brush belt toothed
Brush belt toothed are made of polyurethane. These belts are driven by toothed pulleys. This type of belt is mainly used for positioning or transfer applications. The advantage of the toothed belt brush is the positioning precision achieved. The speed of rotation can be precisely adjusted up to 6 m/s. Packing density is limited, as fibers can only be inserted on the surface corresponding to the belt notches. This means that the density is always relatively low.
Models
The models shown are standard. For all other requests, please contact our sales department.
Parameters
- B – Band width
- BB – Brushing thickness
- BG – Drill hole
- D – Gear diameter
- AH – Gap between gears
- BP – drilling model
- VM – Lining
- ZH – Fiber outlet
* Drilling pattern: (O) open, (D) dense or (Z) very dense. (Density for width). The density of toothed brush belts is limited because the space available for the brush fibers is restricted to the upper part of the belt. The filling form is therefore always relatively open.
See all configuration options
| Brush belt toothed | |||
| Item number | Belt width (mm) | ||

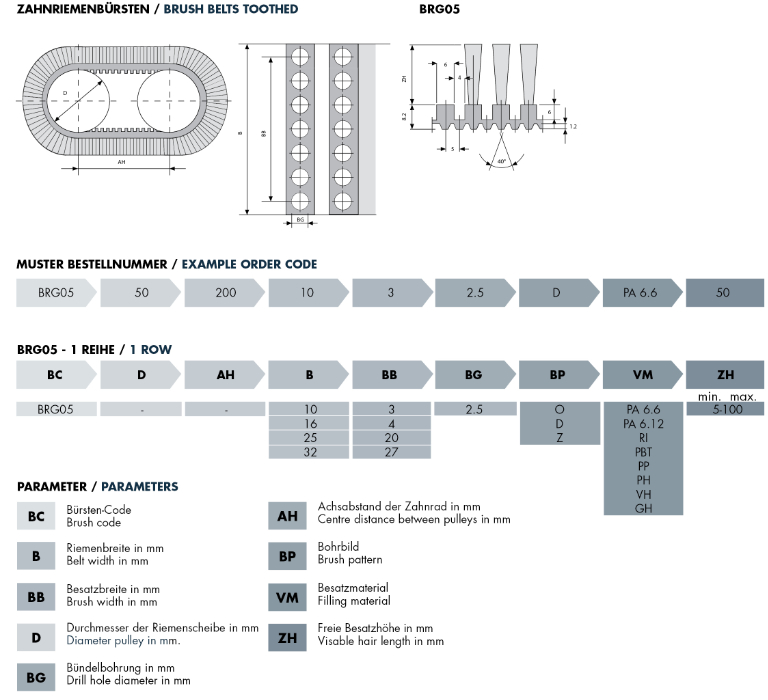

| BRG05 | 10 - 16 - 25 - 32 | ||

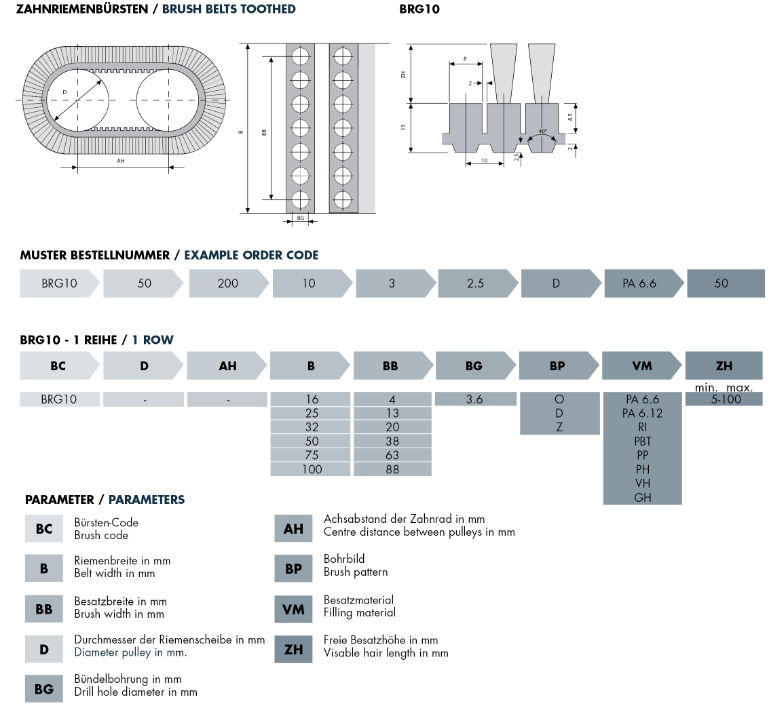

| BRG10 | 16 - 25 - 32 - 50 - 75 - 100 | ||

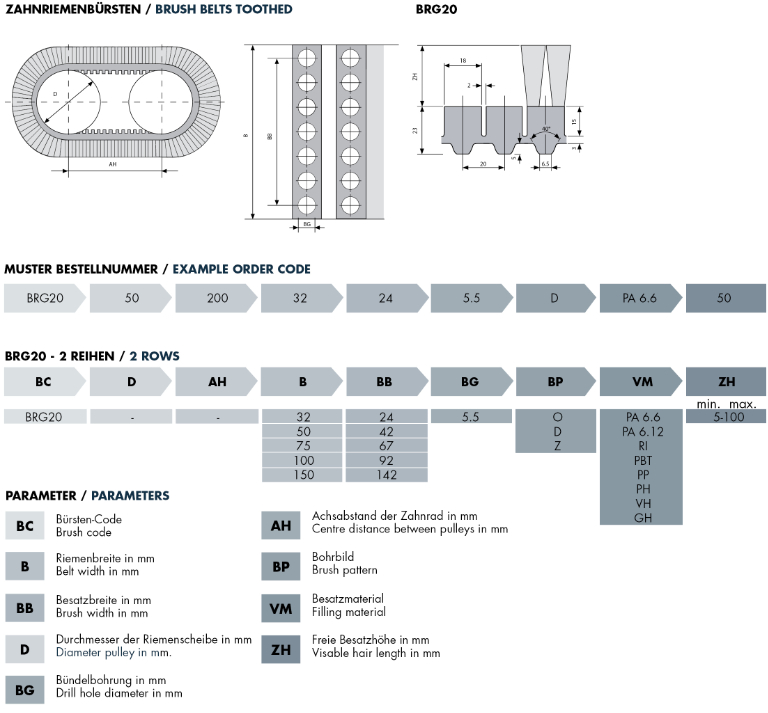

| BRG20 | 32 - 50 - 75 - 100 - 150 | ||
Lining
The type of lining we use will depend on your application and industry. Do you have any questions about which fiber to use? Please do not hesitate to contact us.
| Lining | |||
| Abbreviation | Description | ||
| GH | Goat's hair | ||
| AP 6 | Polyamide 6 | ||
| PA 6.12 | Polyamide 6.12 | ||
| PA 6.6 | Polyamide 6.6 | ||
| PBT | Polyester | ||
| PH | Horsehair | ||
| PP | Polypropylene | ||
| VH | Pork silk | ||
