Brush straps

Brush belt
V-string

Ideal for tight or tricky situations.

  • Easy assembly and disassembly
  • Available for almost all V-belts
  • Available on roll or endless
  • Available with 1, 2 and 3 row trim

Brush belt V-string

This type of brush is perfectly suited to cleaning operations on all types of surfaces, as well as for transporting and supporting fragile products. Depending on width, the brush consists of one or more rows. The length will determine whether an additional support is required to position the brush correctly. Our standard V-belt brush can easily be used.

Models

The models shown are standard. For all other requests, please contact our sales department.

Parameters

  • L – Length
  • PB – Profile width
  • PH – Profile height
  • E – Endless
  • VM – Lining
  • VD – Fiber diameter
  • ZH – Fiber outlet
See all configuration options

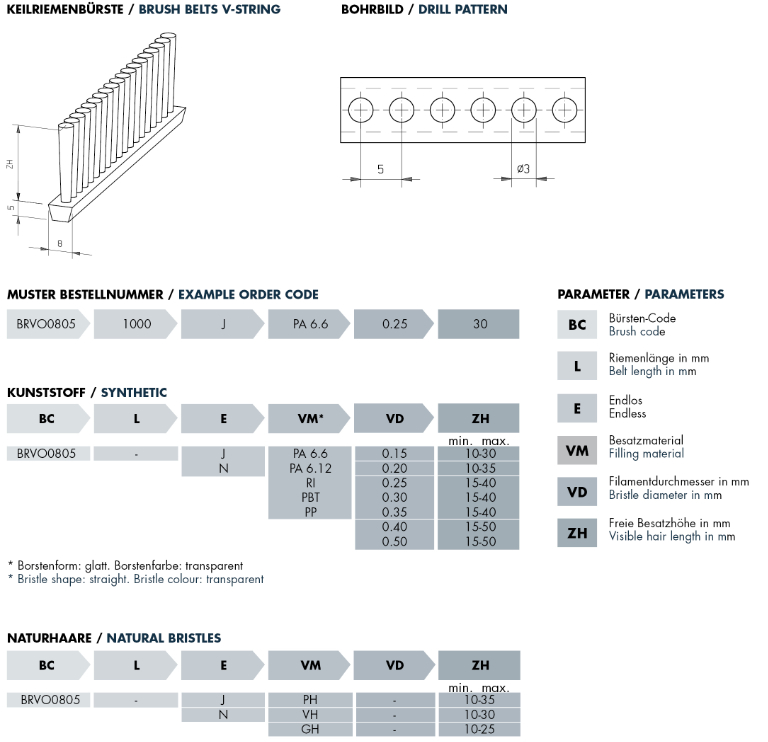

Brush belt V-string
Item number Drill hole (mm) Trim rows
BRVO0805 3,0 1

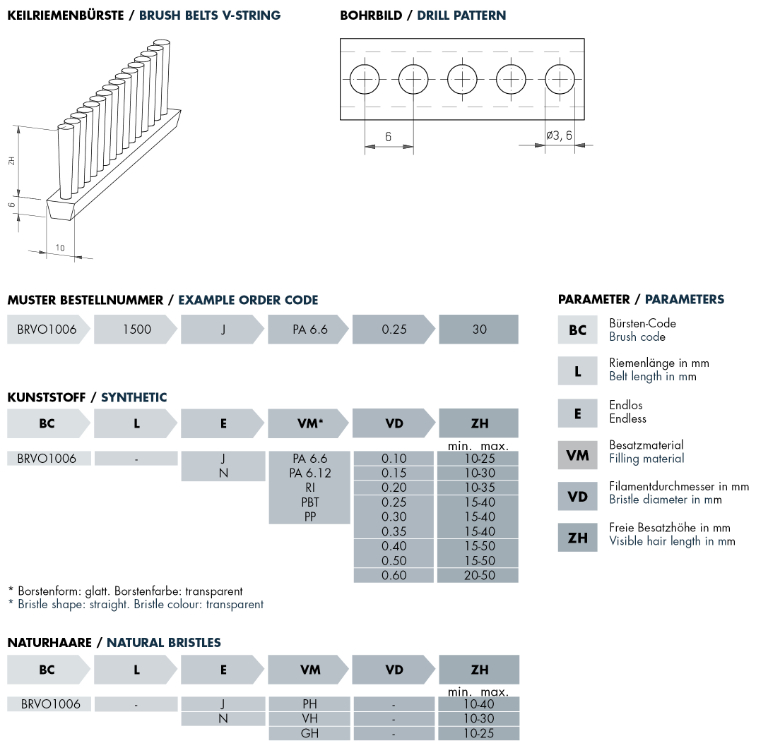

BRVO1006 3,6 1

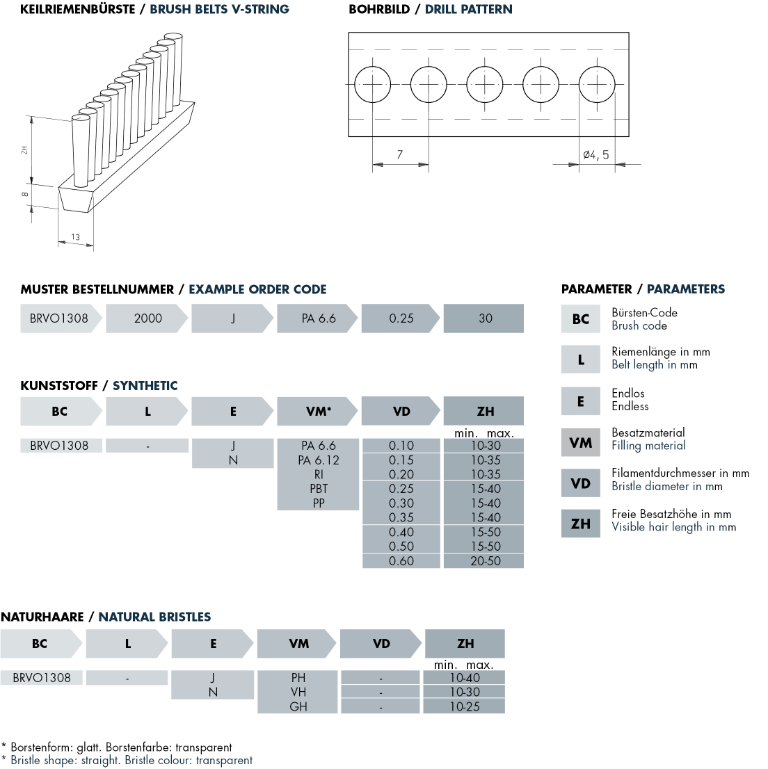

BRVO1308 4,5 1

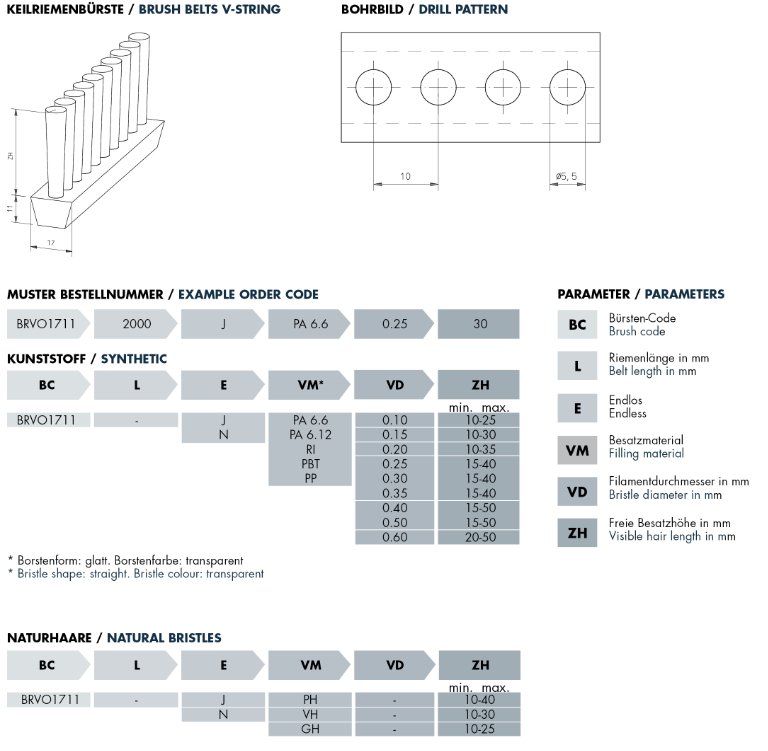

BRVO1711 5,5 1

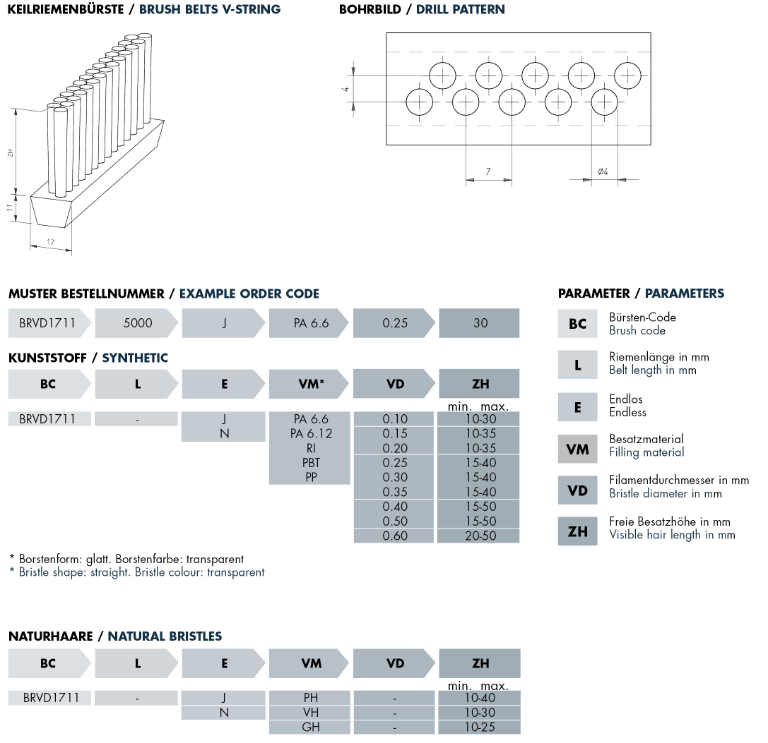

BRVD1711 4,0 2

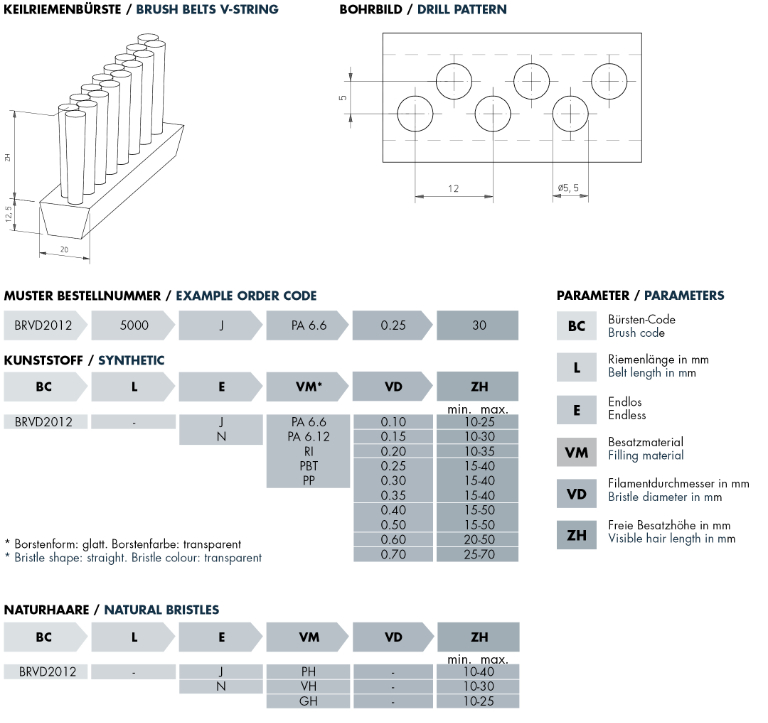

BRVD2012 5,5 2

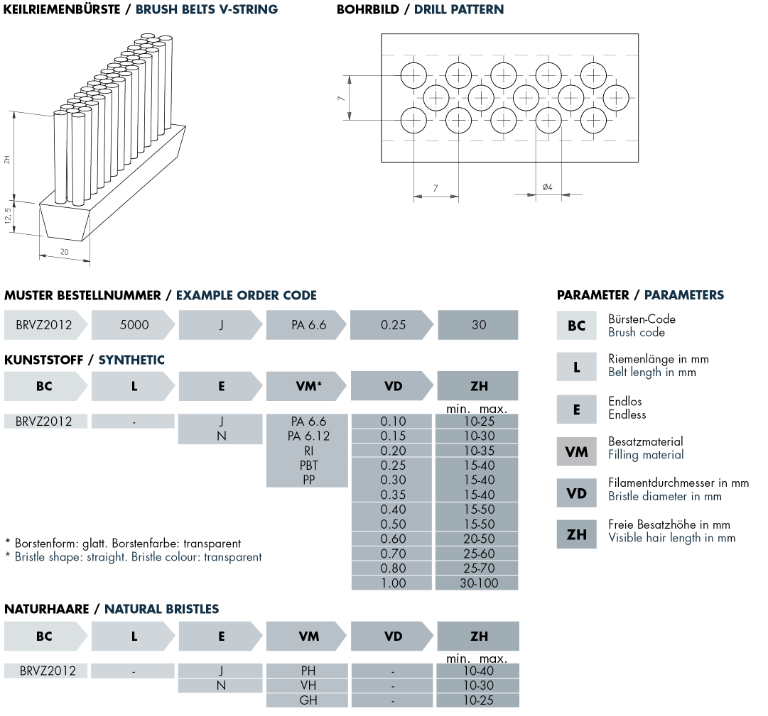

BRVZ2012 4,0 3

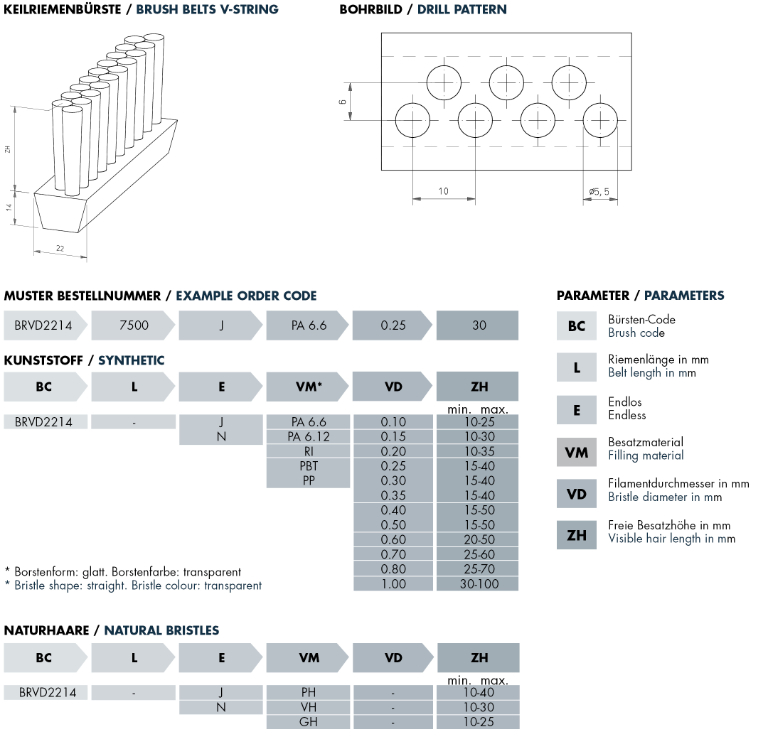

BRVD2214 5,5 2

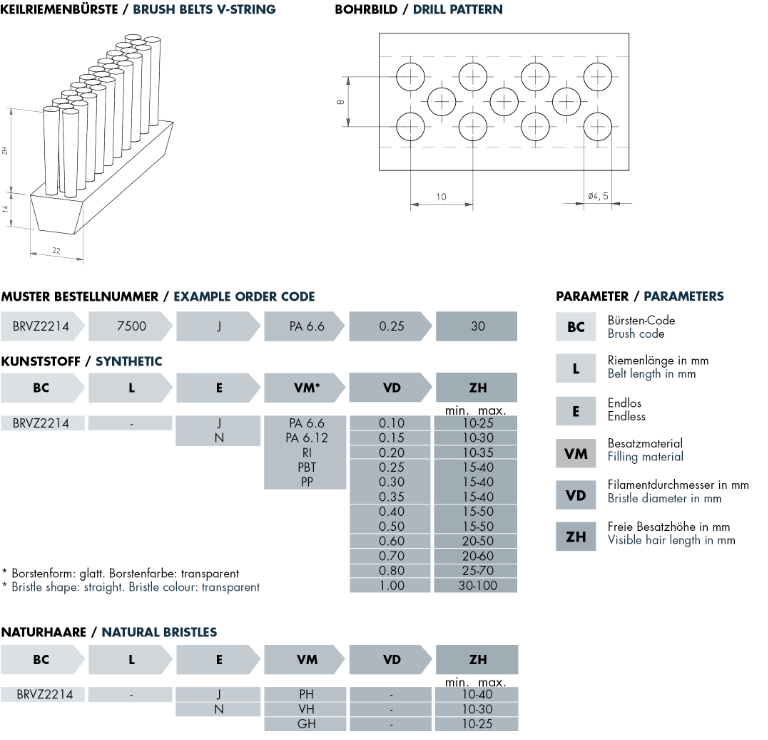

BRVZ2214 4,5 3

Lining

The type of lining we use will depend on your application and industry. Do you have any questions about which fiber to use? Please do not hesitate to contact us.

Lining
Abbreviation Description
GH Goat's hair
AP 6 Polyamide 6
PA 6.12 Polyamide 6.12
PA 6.6 Polyamide 6.6
PBT Polyester
PH Horsehair
PP Polypropylene
VH Pork silk
Endless possibilities
