Circular brush
Whether you use the circular brush for derusting, cleaning, deburring, weld treatment or removing scale and paint, it won’t disappoint.
Crimped wire elements are suitable for deburring, cleaning, smoothing, polishing, tarnishing and paint stripping. Twisted brushes are used for weld joint treatment, descaling and varnish removal.
When it comes to SH-Circular brushes with the highest filling density, Koti is unbeatable. KOTI is the most versatile, thanks to a multitude of filling material qualities and several outer diameters to suit different working widths. They are particularly suitable for deburring, as well as for removing rust and paint.
Models
The models shown are standard. For all other requests, please contact our sales department. Not sure, or need some advice?
Parameters
- BD-ST – Standard brush diameter
- D1 – Shaft diameter
- D – Bore
- D2 – Flange diameter
- KD – Body diameter
- BB – Brushing thickness
- VT Type of trim
- VM – Lining
- VD – Fiber diameter
- ZH – Fiber outlet
- RPM – Revolutions per minute
| Circular brush | |||
| Item number | Brush type | ||

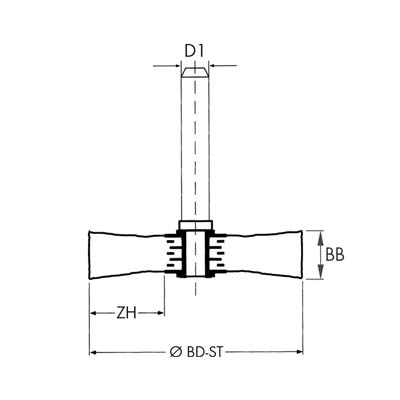

| WCIBJ | Pin brush | ||

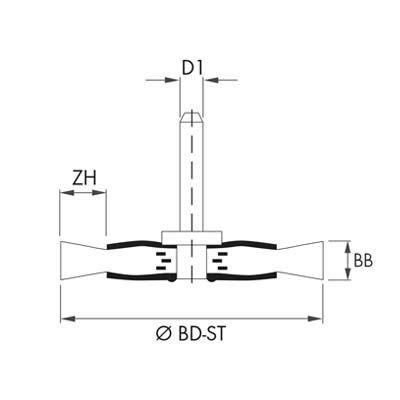

| WCIBJS | Pin brush | ||

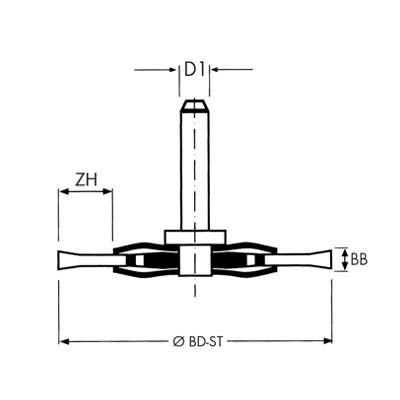

| WCIBJU | Pin brush | ||

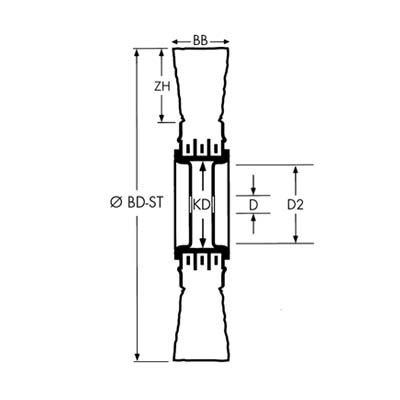

| WCIBN | Circular brush | ||

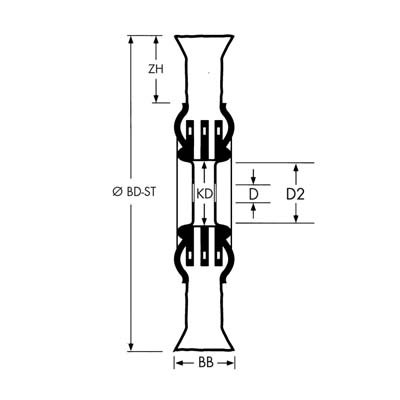

| WCIBNU | Circular brush | ||
| WCISH | SH-Circular brush | ||
| WCISHD | SH-Circular brush | ||

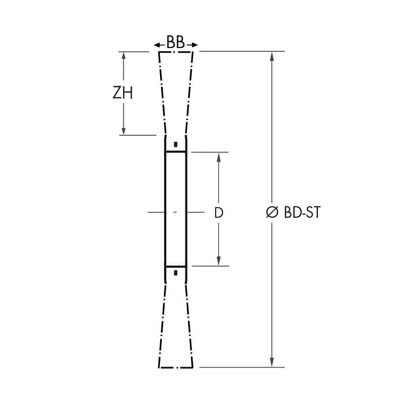

| WCISHU | SH-Circular brush | ||
Lining
The type of lining we use will depend on your application and industry. Do you have any questions about which fiber to use? Please do not hesitate to contact us.
| Lining | |||
| Abbreviation | Description | ||
| AS-K120 | ANS-Grit size 120 (K) - Nylon abrasive fiber | ||
| AS-K180 | ANS-Grit size 180 (K) - Nylon abrasive fiber | ||
| AS-K320 | ANS-Grit size 320 (K) - Abrasive nylon fiber | ||
| AZD | Hardened, abrasive steel fiber | ||
| STAINLESS STEEL | Steel fiber | ||
| BED | Stranded brass-plated steel fiber | ||
| LTE | Brass-plated steel fiber | ||
| MY | Brass wire | ||
| MST | Steel wire, natural hardness | ||
| SUP | Steel wire, hardened | ||
Your success is our success
Need help finding
the perfect brush?
Do you have any questions about the circular brush, or are you looking for a customized solution? Contact us, and we’ll be delighted to help.
