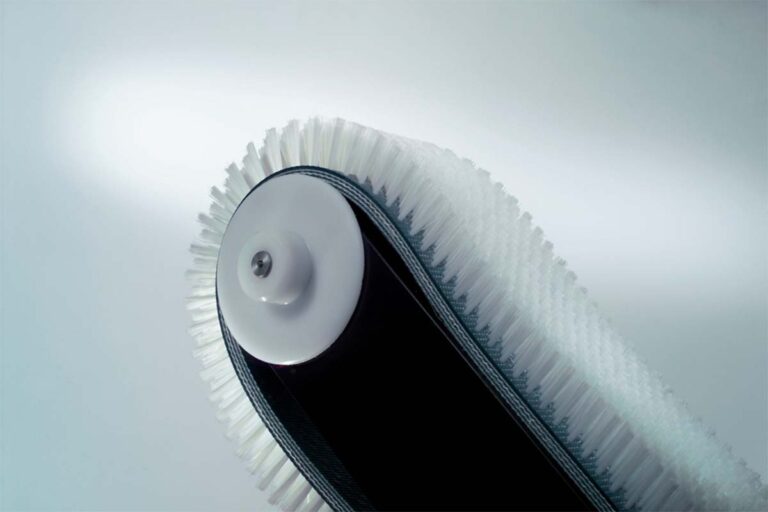

Flat belt brush
Flat belt brush supports are made of leather (with or without synthetic reinforcement). Large widths are possible. If required, the belt can be fitted with a guide reinforcement. They can be supplied closed or in rolls. The main difference with the V-belt is that the packing density can be low to very dense.

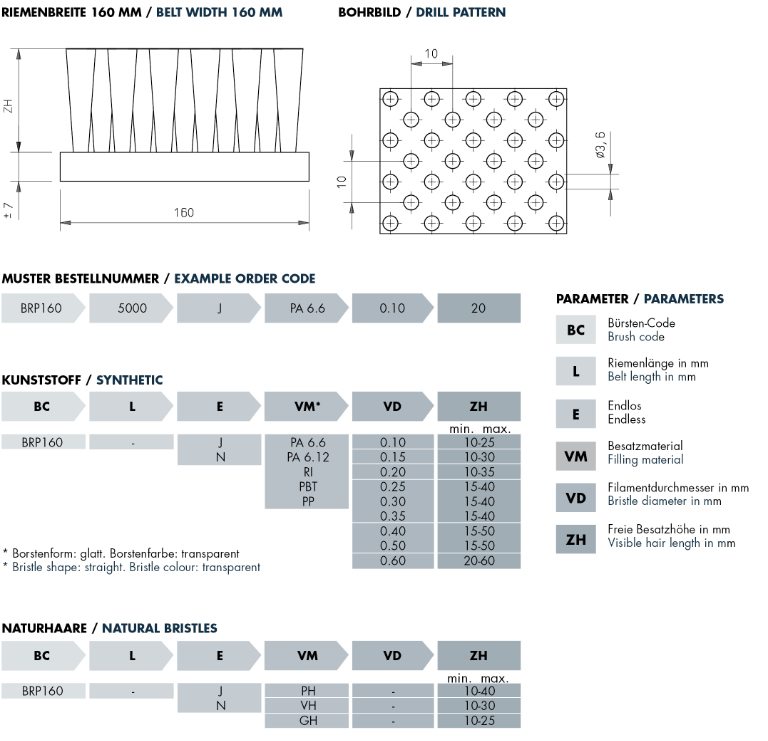

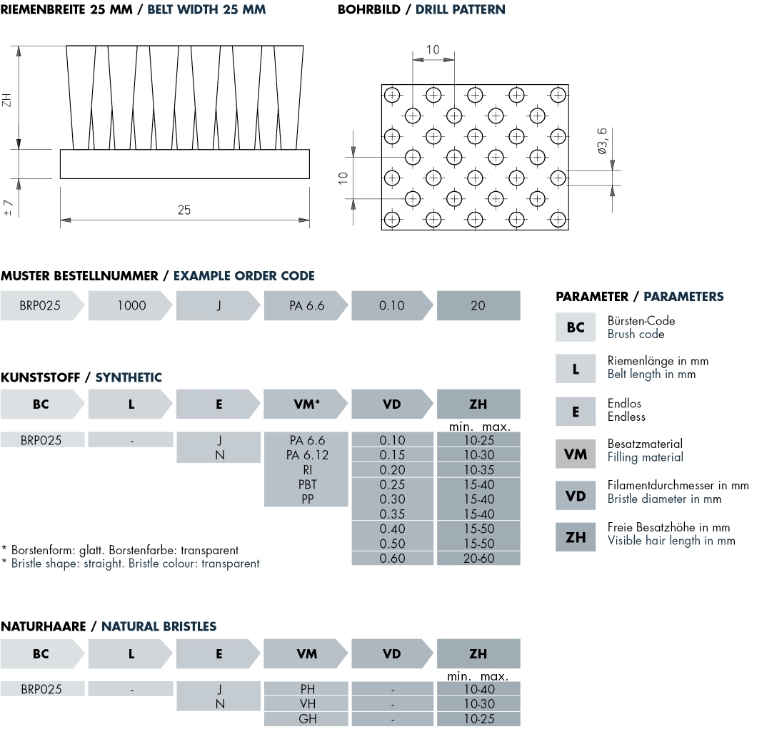

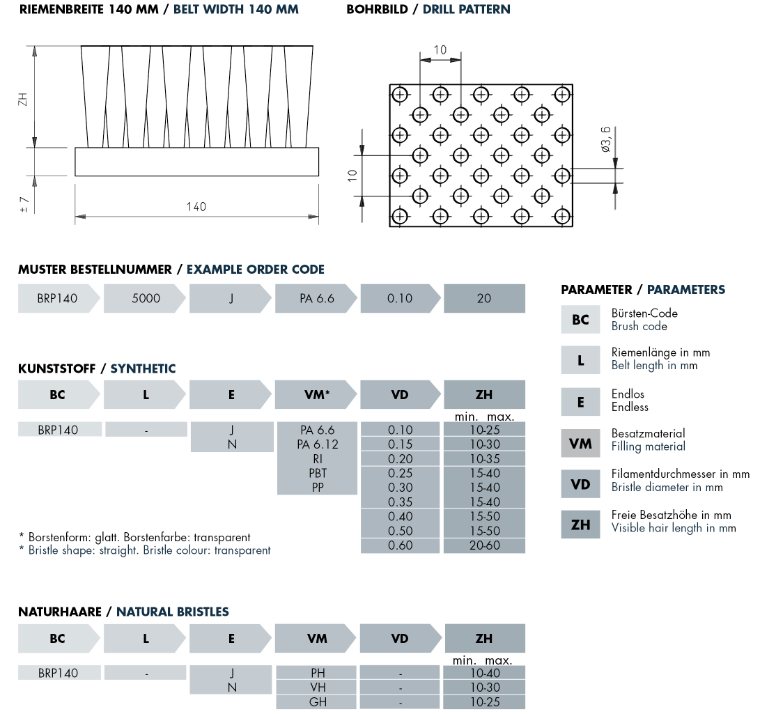

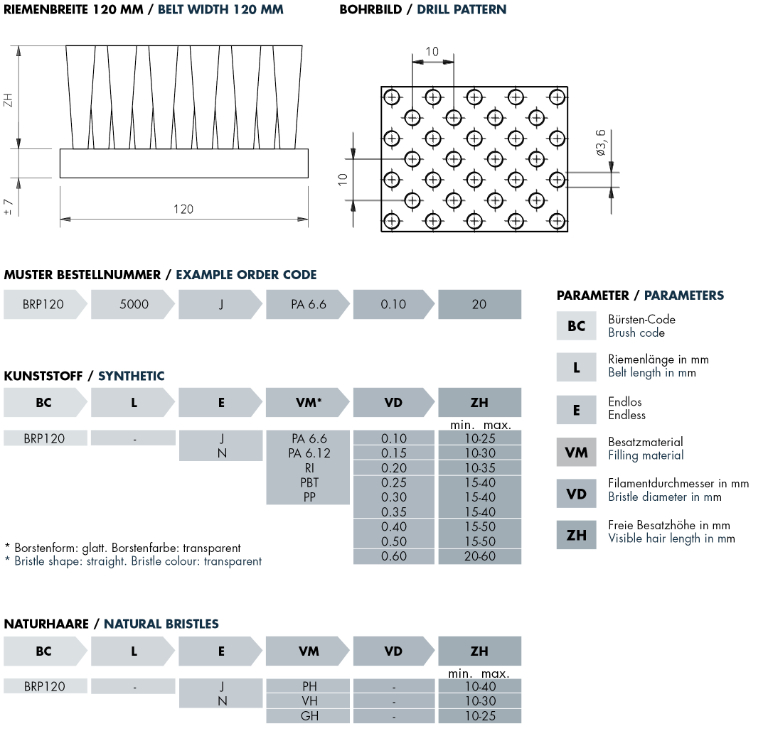

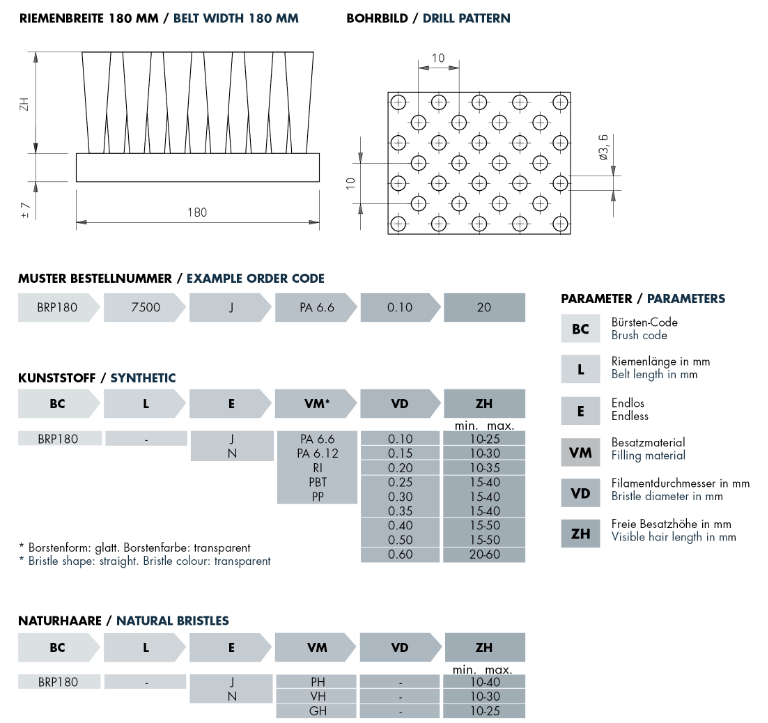

Models
The models shown are standard. For all other requests, please contact our sales department.
Parameters
- B – Band width
- L – Length
- E – Endless
- VM – Lining
- VD – Fiber diameter
- ZH – Fiber outlet
Lining
The type of lining we use will depend on your application and industry. Do you have any questions about which fiber to use? Please do not hesitate to contact us.
| Lining | |||
| Abbreviation | Description | Benefits | |
| GH | Goat's hair | Extremely soft fiber for delicate work | |
| PA 6.12 | Polyamide 6.12 | Does not retain moisture, better resilience than nylon 6.6 | |
| PA 6.6 | Polyamide 6.6 | Suitable for industrial applications, heat and abrasion resistant | |
| PBT | Polyester | Heat- and wear-resistant, non-retaining and certified for food use | |
| PH | Horsehair | Flexible fiber for light (e.g. for plastic strips) | |
| PP | Polypropylene | Non-moisture-holding, acid-resistant, lower abrasion resistance than nylon 6.6 and 6.12 | |
| RI | Rilsan | Does not retain moisture, very high abrasion resistance | |
| VH | Pork silk | Harder than horsehair | |
