Brush straps

Quick Chain

Belt made up of connectable elements.

  • Individual links available in 100 and 200 mm widths
  • Easy assembly and disassembly
  • Belt brushes available in almost any desired length and width
  • Individual elements save on inventory investment and storage volume

Quick Chain

The Quick Chain system is a belt brush made up of linkable elements. These links are available in lengths from 100 to 200 mm. Almost any length and width can be achieved. The Quick Chain system is remarkable for its simple assembly and disassembly. A locally worn part can easily be replaced by a new one. It can be used horizontally, vertically or at an angle. With this system, various types of product can be transported without breakage or noise, e.g. eggs, fruit, boxes, etc. The filling, density, diameter and length of the fibers depend on the application.

Models

The models shown are standard. For all other requests, please contact our sales department.

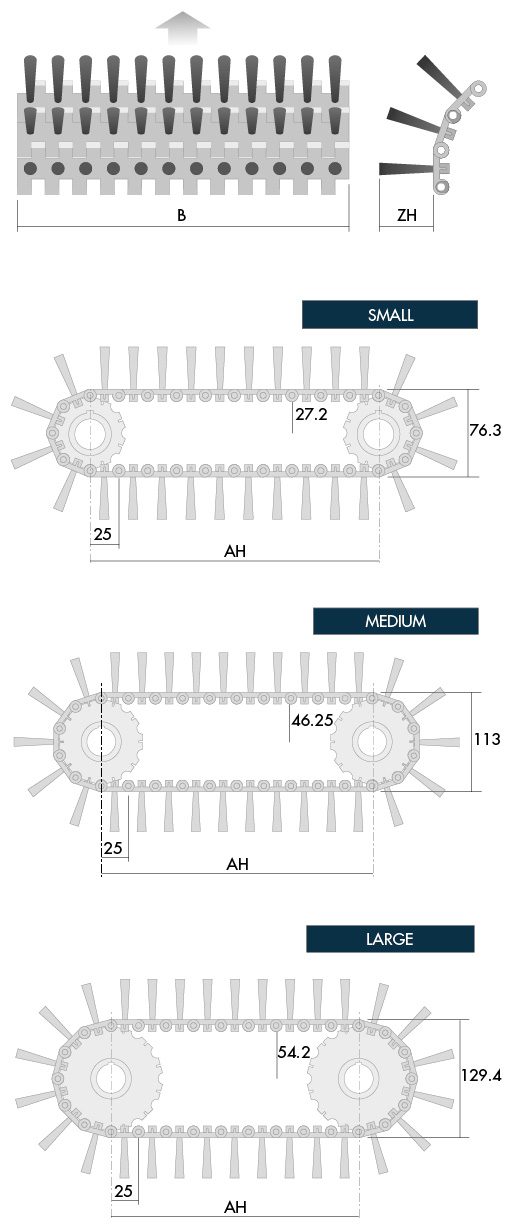

Parameters

  • AH – Pinion center distance
  • B – Bandwidth
  • VM – Lining
  • VD Fiber diameter
  • ZH – Fiber outlet
See all configuration options

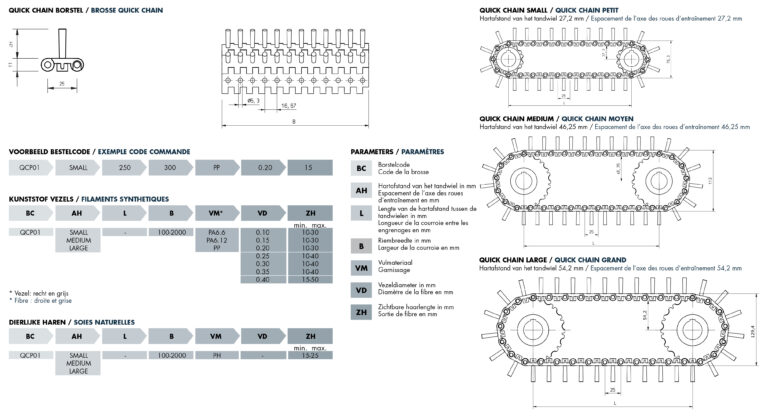

Quick Chain
Item number Pinion center distance (mm)

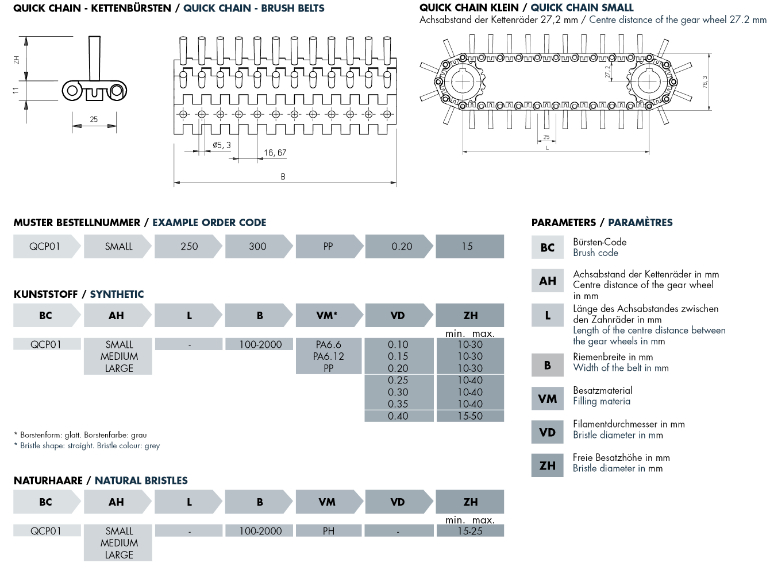

QCPS01 27,2

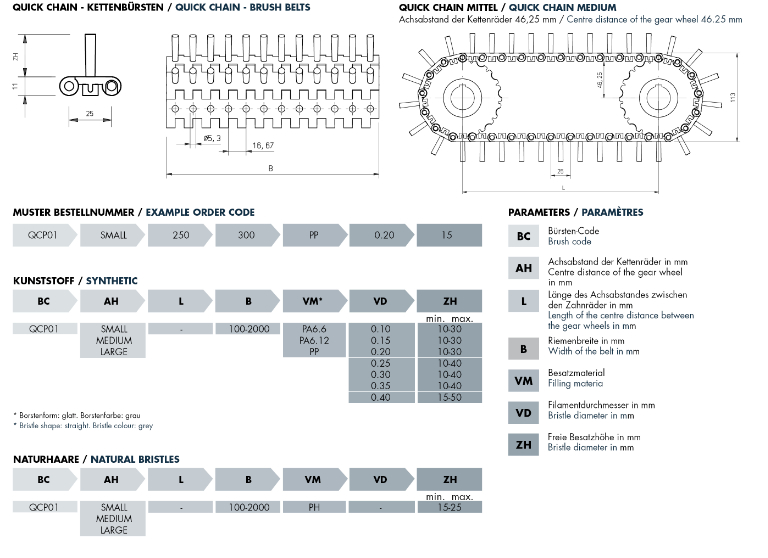

QCPM01 46,25

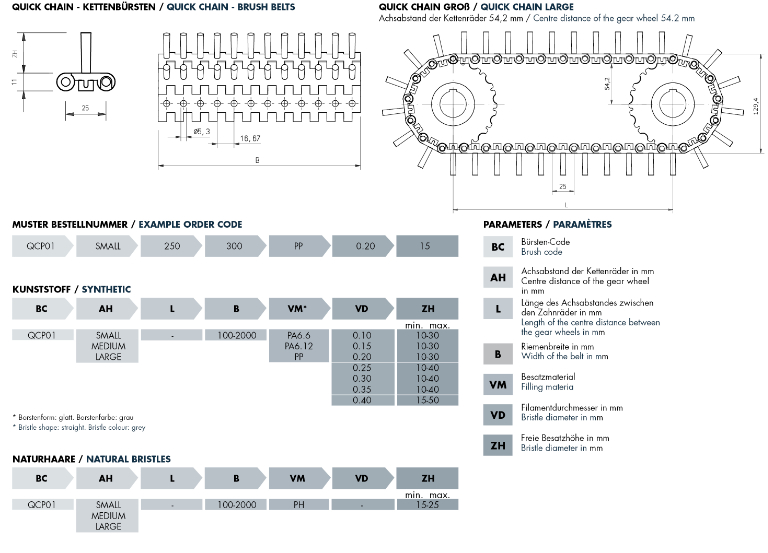

QCPL01 54,2

Lining

The type of lining we use will depend on your application and industry. Do you have any questions about which fiber to use? Please do not hesitate to contact us.

Lining
Abbreviation Description
AP 6 Polyamide 6
PA 6.12 Polyamide 6.12
PA 6.6 Polyamide 6.6
PH Horsehair
PP Polypropylene
Endless possibilities
